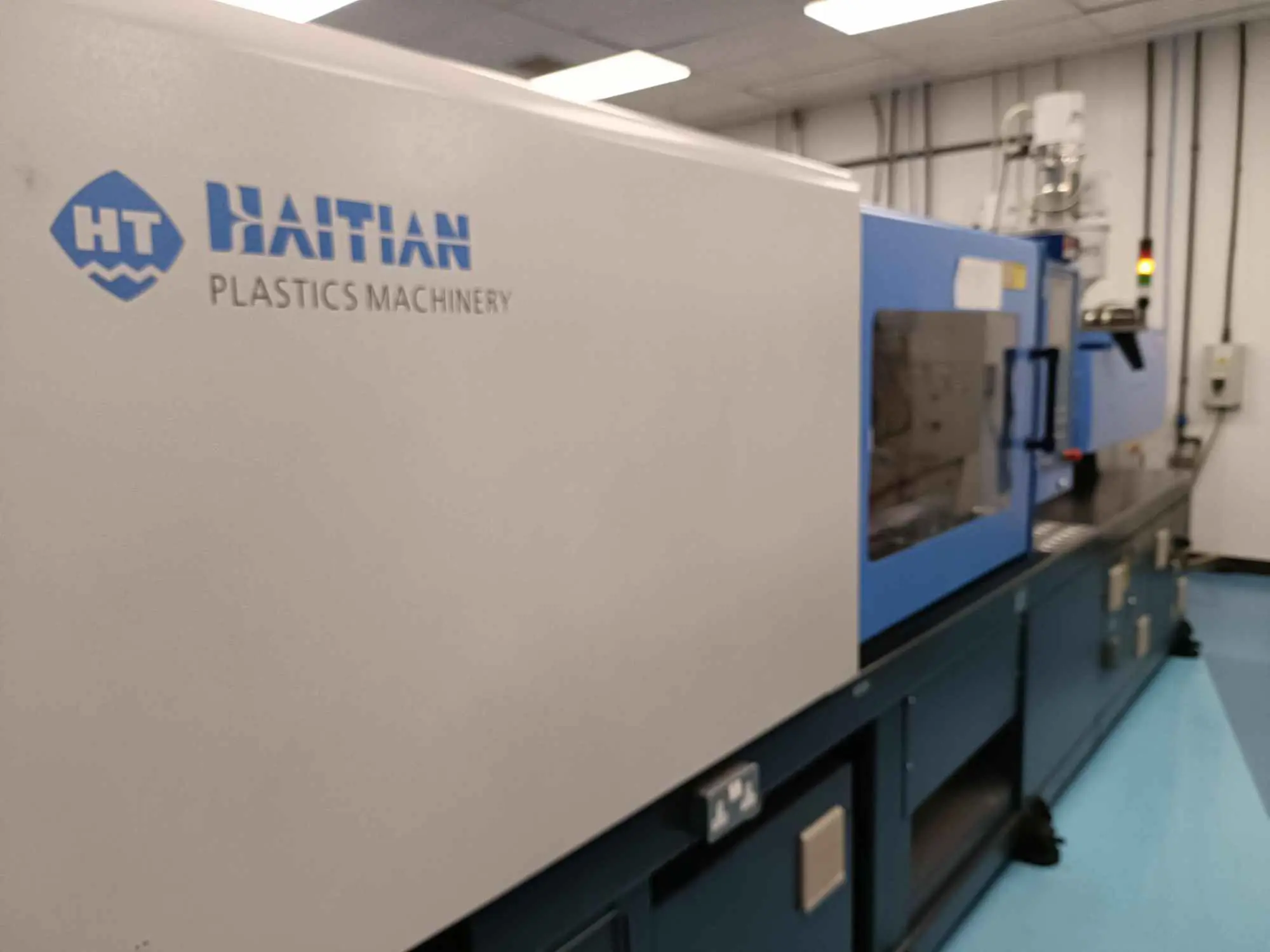

Haitian MA 1600 II Eco
Screw size 45 mm
Calculated volume 320 cm³
Injection Capacity 291 g
Plasticization Capacity 20 g/s
Clamp Force 1600 KN
Space between Tie bars 470 x 470 mm
Die Height (Max) 520 mm
Die Height (Min) 180 mm
Mould Open stroke 430 mm
Machine Dims 5.15 x 1.35 x 1.96 m
Minimal Mould Dims L x W 330 x 330 mm
Pump Motor Power 30 KW
Oil Tank Capacity 420 l
Hrs worked 31896
Serial Number 201107016033557
Runs well no issues.
