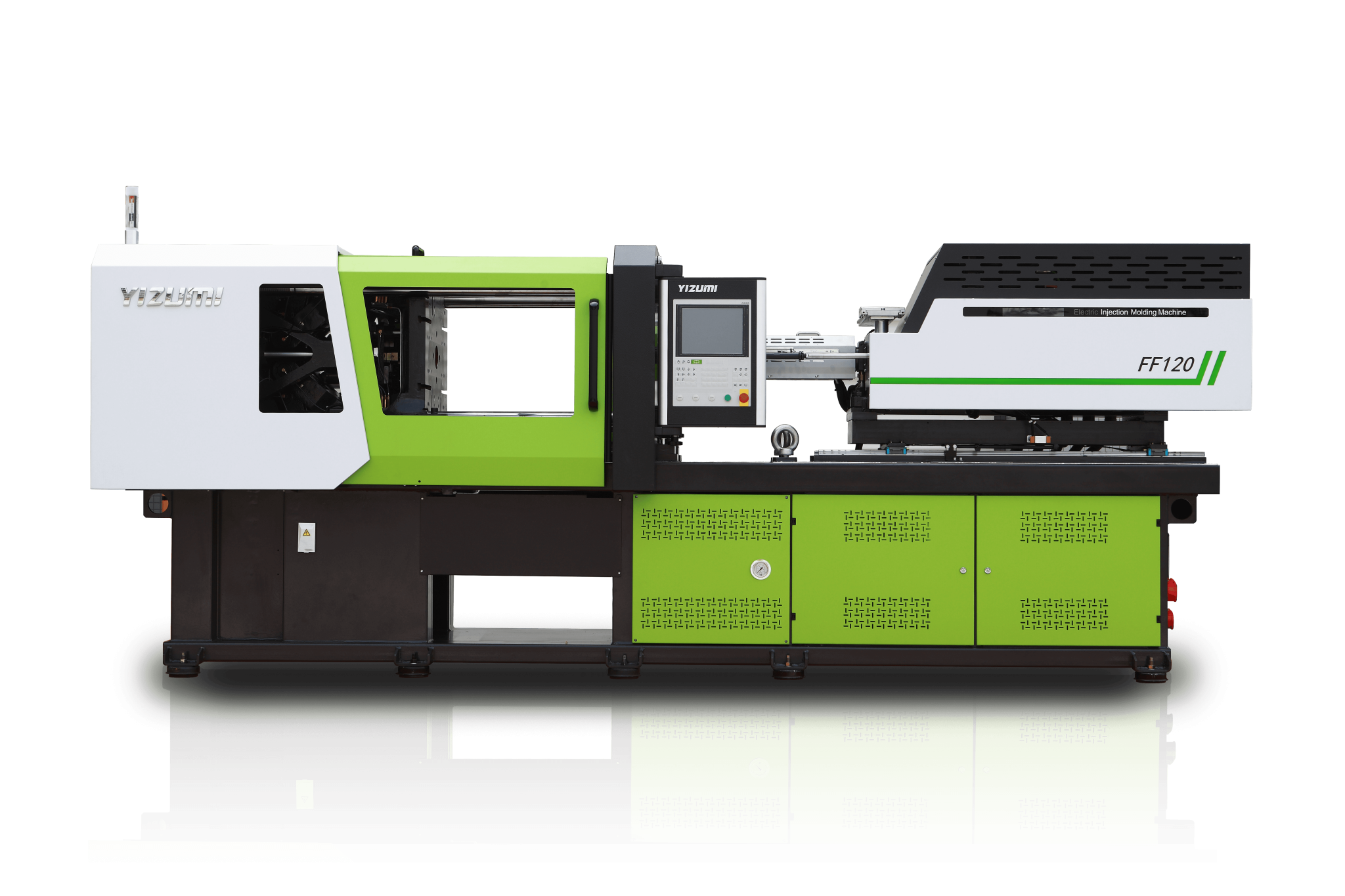

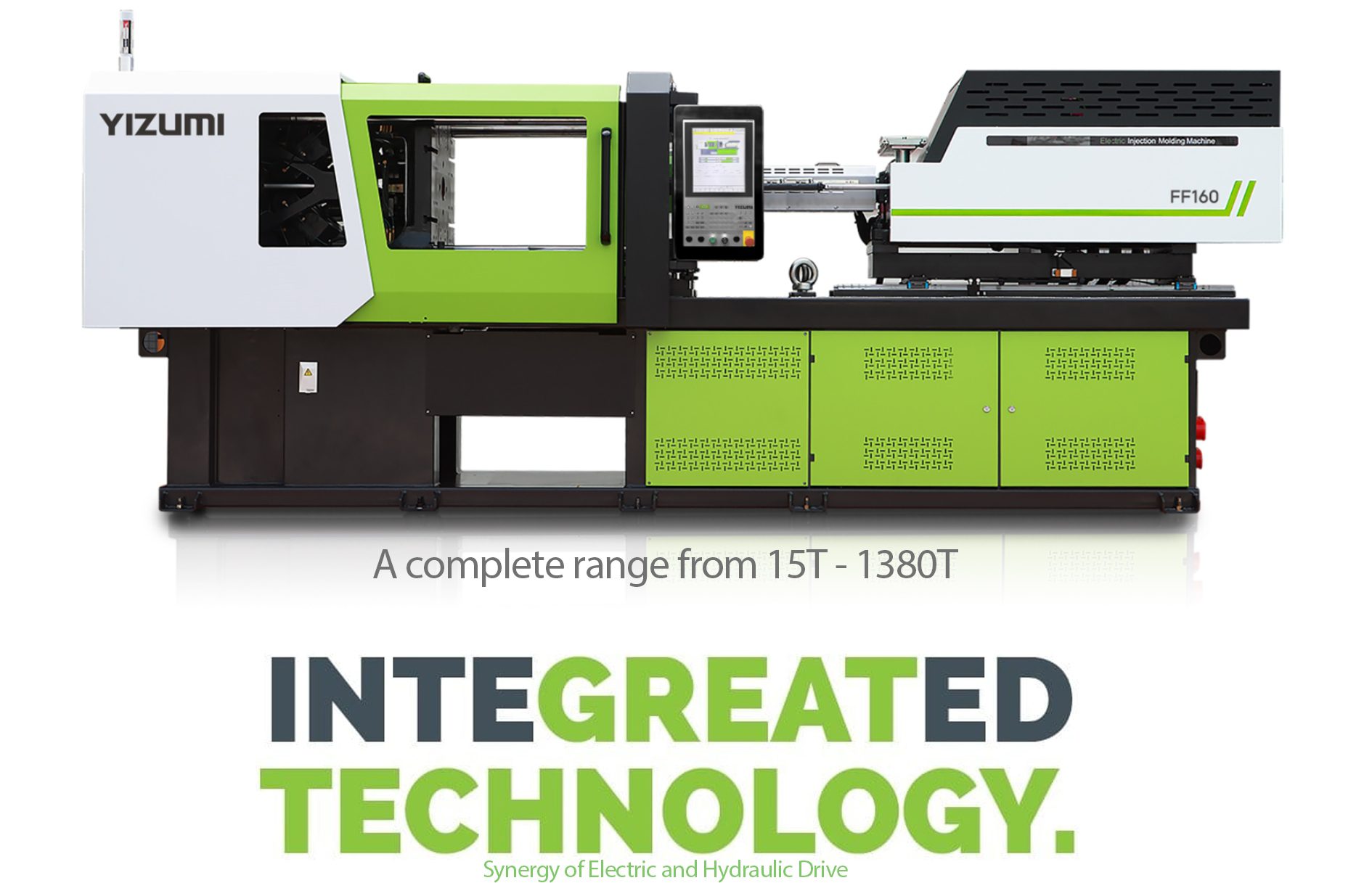

Yizumi FF Series

Synergy of electric and hydraulic drive.

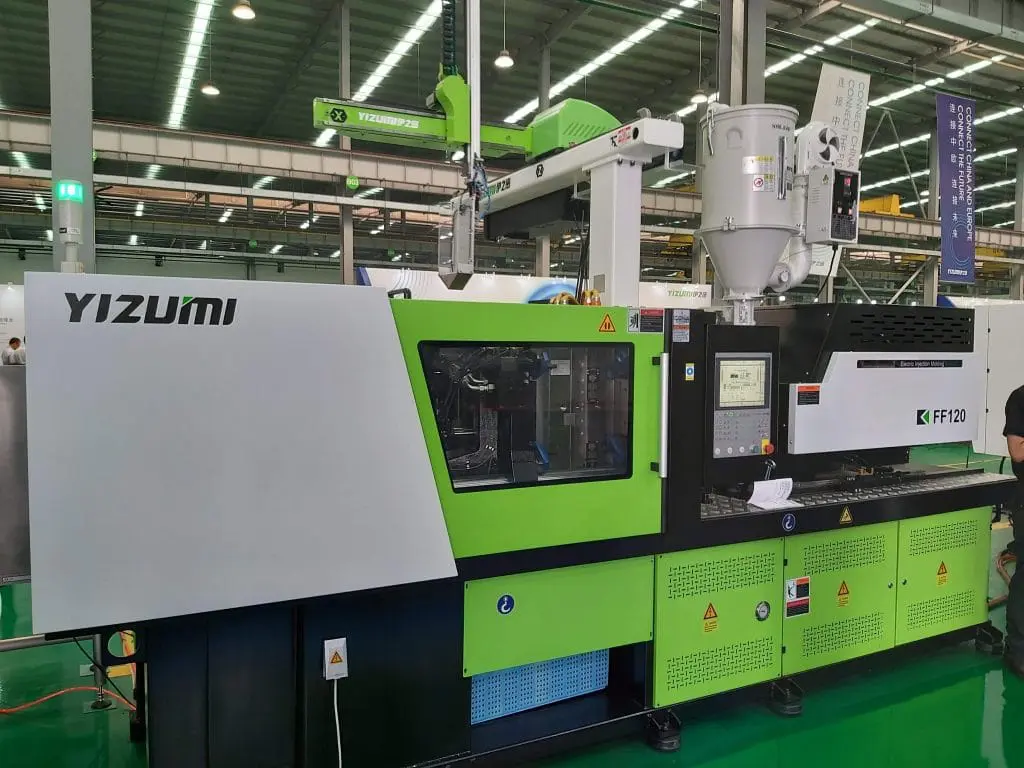

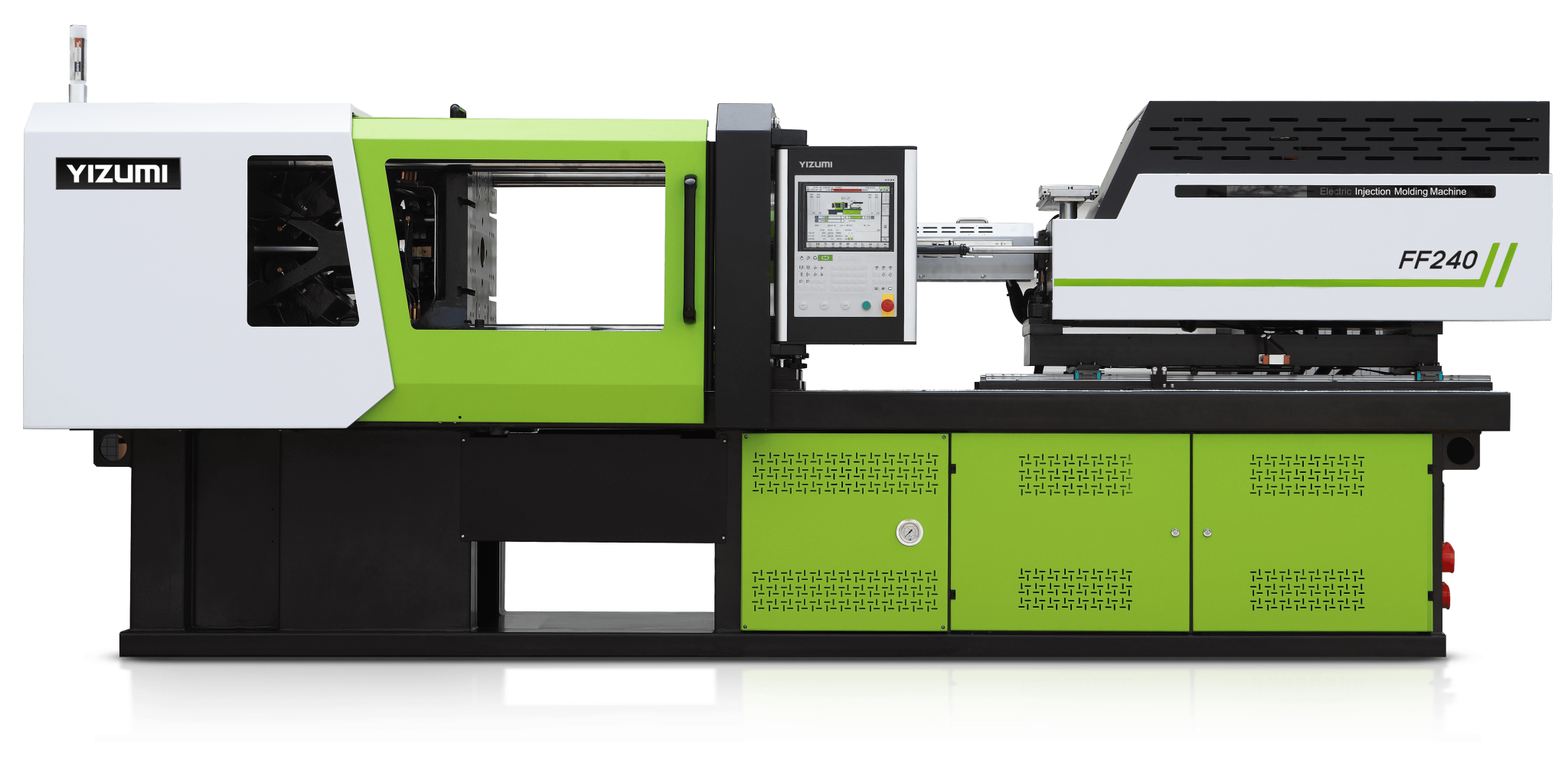

FF Series Overview

The brand new FF range of hybrid machines combines the benefits of electric drive with the practical features of hydraulic operation, resulting in the perfect blend of efficiency and value. The FF series uses servo motors for absolute accuracy with the combination of hydraulic drive for linear movements, like carriage movements and core pull sequences. Optimising the drive type for each movement gives you a more accurate, efficient and repeatable machine.

Key Standard Features

  • Three servo drives allow multiple parallel movements
  • Servo hydraulics available for double cores, unscrewing, valve gate control, ejector and shut off nozzle

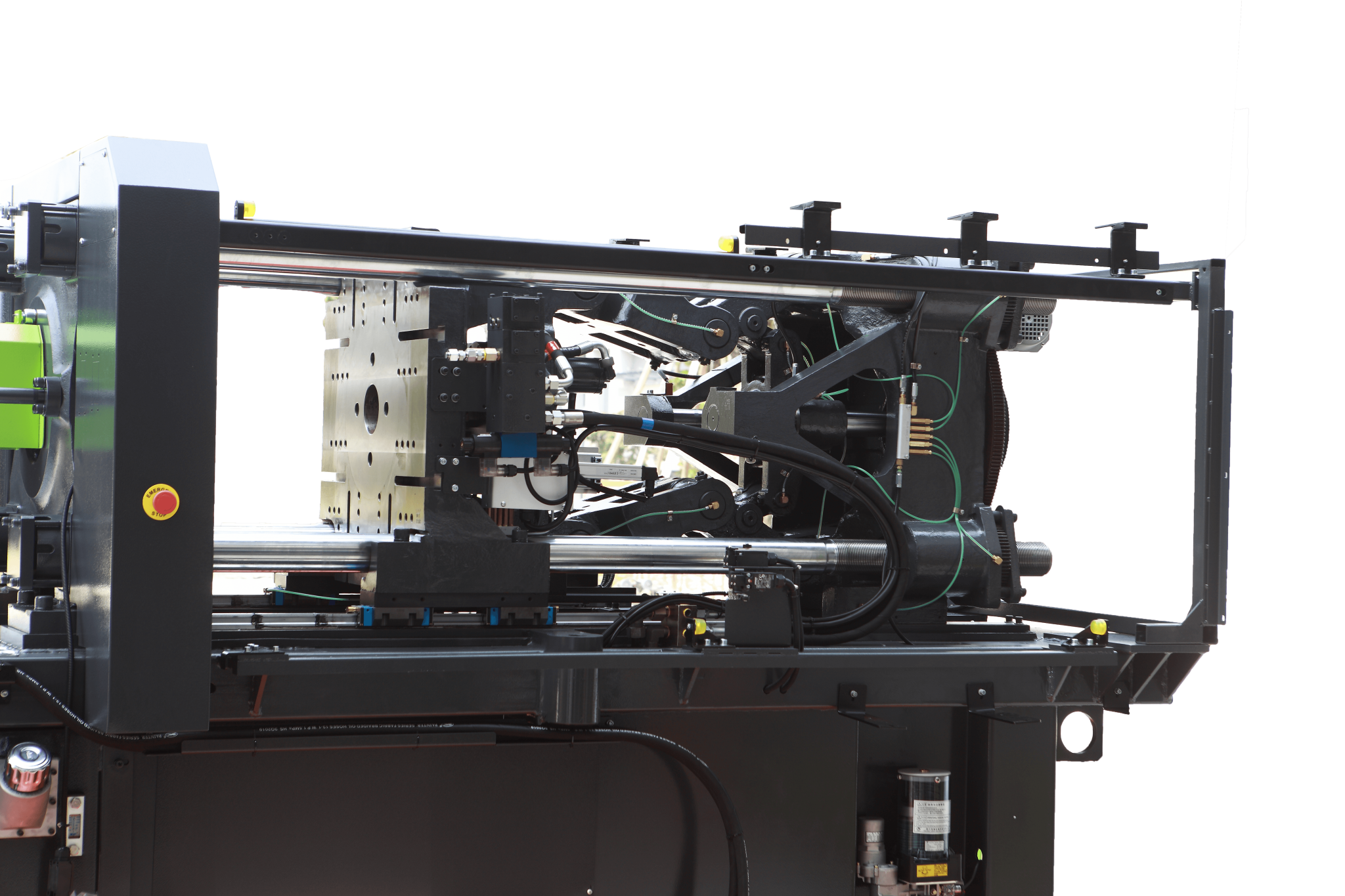

  • Contact free tie bars give improved platen parallelism, reduced energy consumption and a contaminant free moulding area
  • Modular design allows for a large combination of injection units and screws to be chosen for each machine size.  Bespoke customisation of a machine for a particular application is possible.
  • 12-inch colour touchscreen control interface
  • Intelligent mould protection
  • Linear clamp bearings give a cleaner mould area

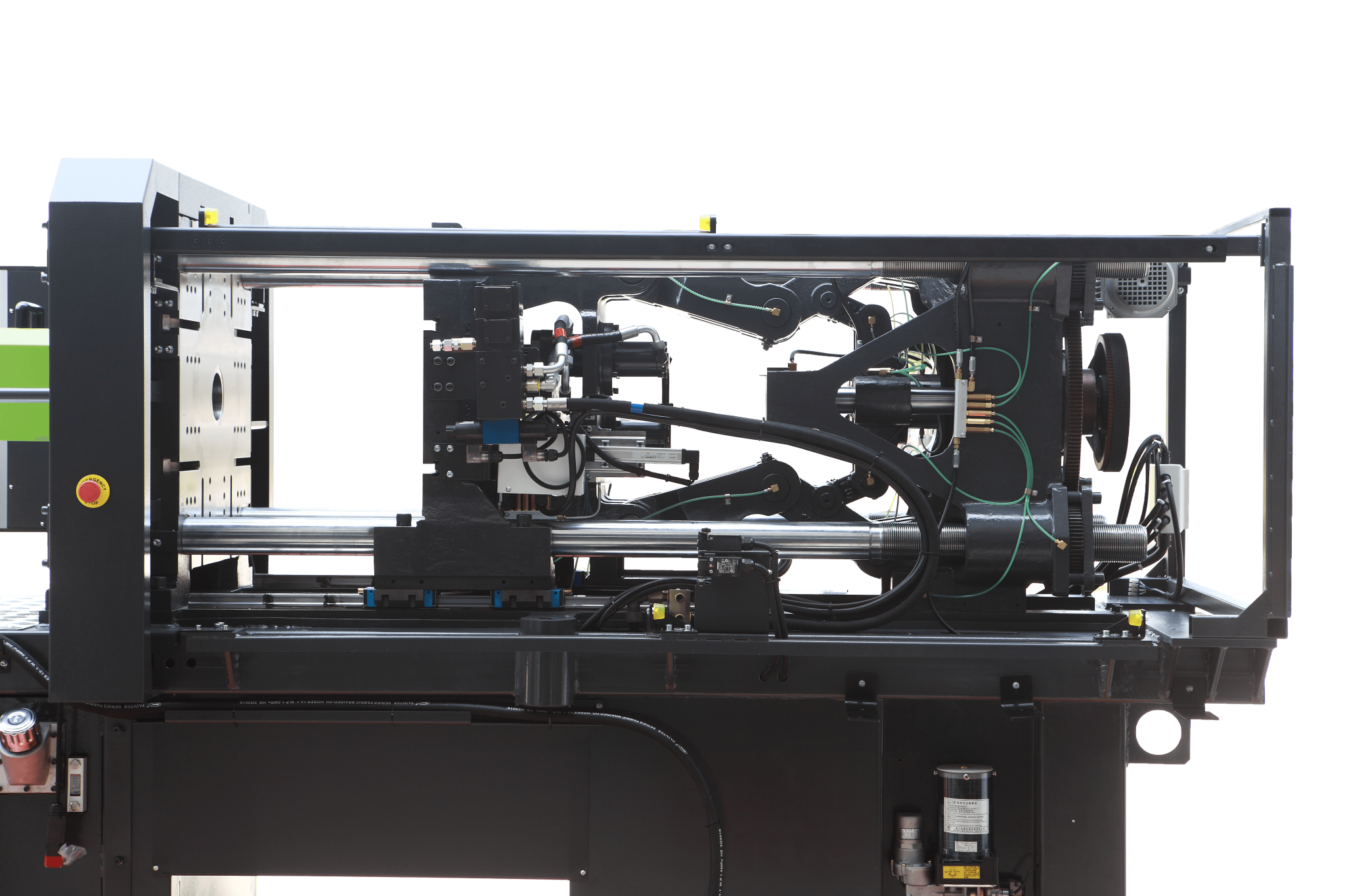

  • Highly accurate clamp movements with the servo drive control

High standard specification

STV Machinery have worked with Yizumi to customise the FF machines to ensure it’s suitable for highly demanding and medical applications.  The high standard specification includes;

  • Electric Hybrid machine with hydraulic carriage

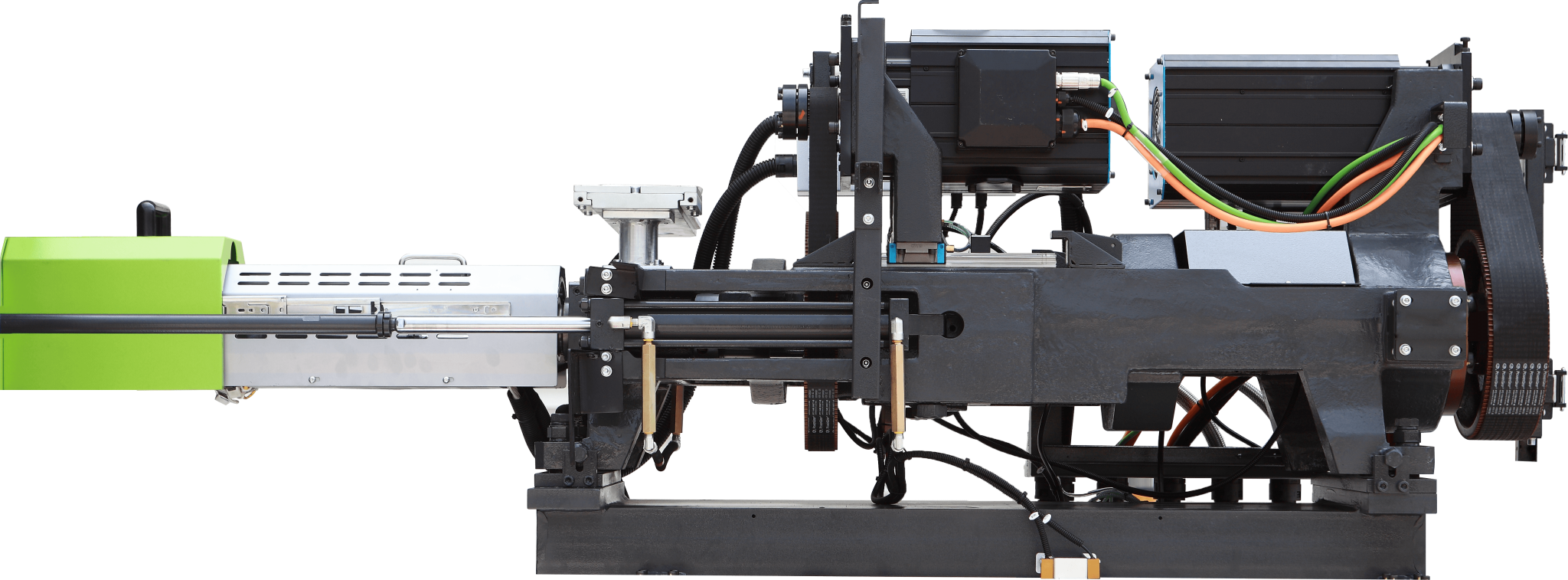

  • Three servo motors control injection, plasticising, clamping and ejection.  Parallel movements possible.
  • KEBA 2000
  • Hydraulic Double core pull
  • Double air blast

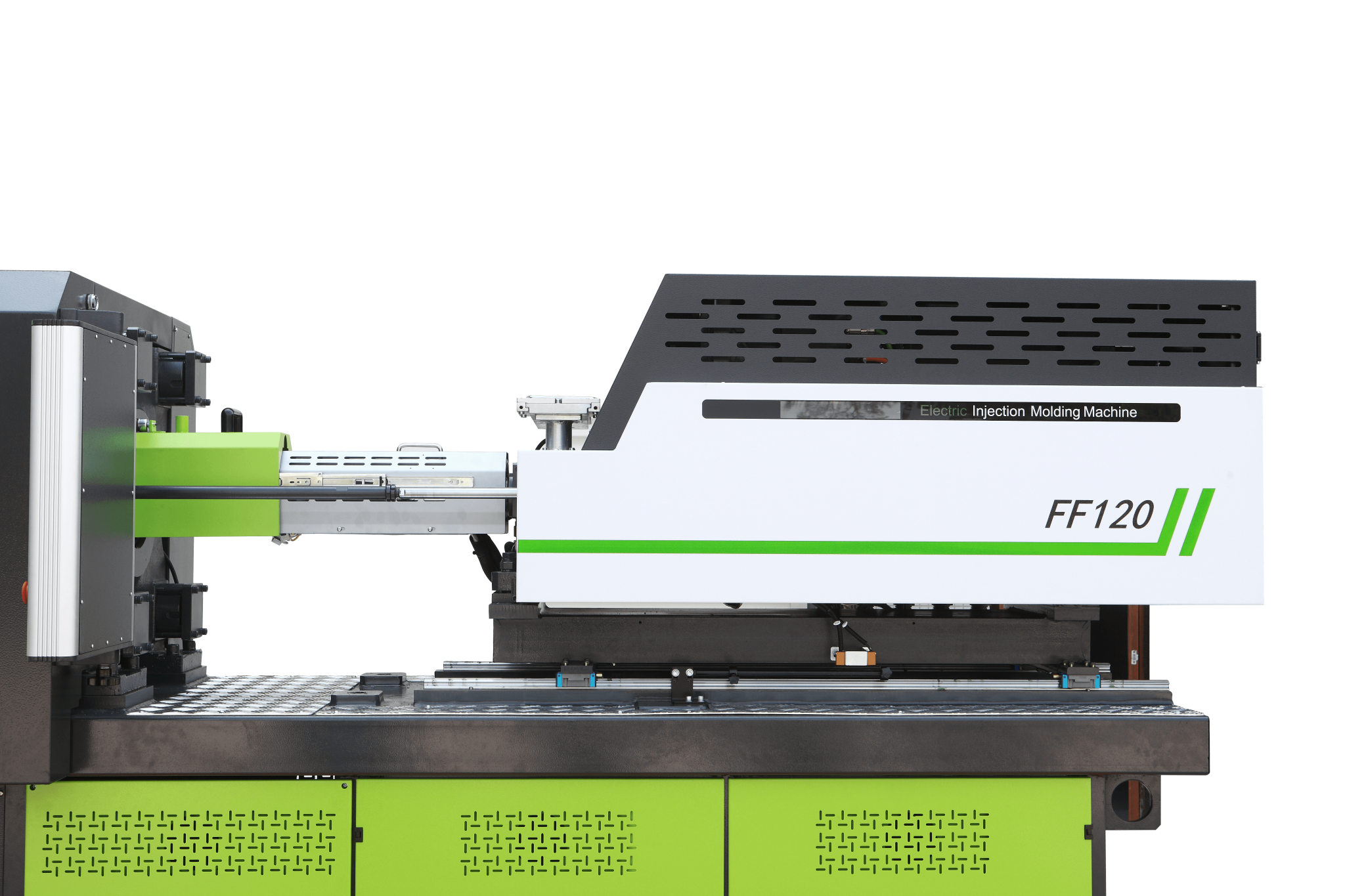

  • Linear bearings on the injection unit and clamp unit give improved alignment, eliminate stiction, reduce lubrication contamination, and offer increased accuracy.
  • Semi-auto start on flying lead
  • Euromap 67 interface and standard robot mounting holes
  • Choice of change over to holding pressure by position or pressure
  • Anti-vibration mounts
  • Industry 4.0 ready
  • Each machine supplied with small spares package
  • Tool kit to suit machine
  • Automatic mould height adjustment
  • Platen with T-slots, mould mounting holes, and full set of mould clamps
  • Monitored central lubrication system
  • Hydraulic ejector with ejector plate and though holes and quick release coupling
  • Contact free tie bars give improved platen parallelism, reduced energy consumption and a contaminant free moulding area
  • 36-month warranty supported by STV’s in-house engineers

Options to customise to suit the application

In addition to the high specification offered as standard, each FE series machine has a number of available options to tailor the machine to suit individual applications, such as;

  • Bi-metallic plasticising unit (ask us about the grades available to suit your material)
  • Ejector can be upgraded to electric drive
  • Gas injection interface
  • Interface for magnetic platens
  • Interface for mould cavity pressure transducer
  • Increased maximum mould height option
  • Injection compression
  • Shut-off nozzle
  • Infrared heater bands
  • KEBA controller upgrade options
  • Turnkey packages including robots & ancillaries
  • Remote login support for rapid process assistance and fault finding
  • Integrated hot runner controls
